QS SERIES
|

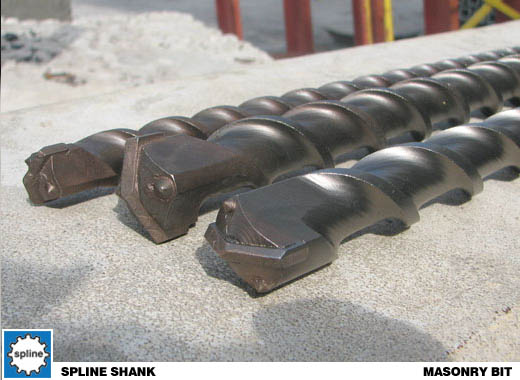

SPLINE DRIVE MASONRY PERCUSSION HAMMER DRILL BITS

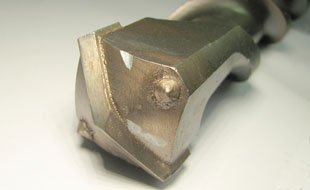

QUAD CUTTER - CARBIDE TIPPED
Designed and produced for spline-drive hammeQS, QS Series Spline-Drive bits are held to exacting tolerances to assure perfect fit as well as maximum impact and torque transmission. B&A Spline Drive rotary/percussion bits are the best available and are designed with maximum strength in order to provide maximum life.
|
|
PERCUSSION HAMMER DRILL - SPLINE DRIVE - QS SERIES - MASONRY
- QUAD CUTTER
|
| PART NUMBER |
SIZE
| USABLE LENGTH |
OVERALL LENGTH |
WT LBS |
|
5/8" DIAMETER
|
| PART# |
DIAMETER |
USEABLE LENGTH |
OVERALL LENGTH |
WEIGHT LBS |
| QS11-0625 |
5/8"
|
6" |
12" |
0.95 |
| QS17-0625 |
5/8"
|
12" |
18" |
1.25 |
| QS23-0625 |
5/8"
|
18" |
23-1/2" |
1.60 |
| QS30-0625 |
5/8"
|
24" |
30" |
2.08 |
| QS36-0625 |
5/8"
|
30" |
36" |
2.50 |
| QS48-0625 |
5/8"
|
42" |
48" |
3.33 |
|
3/4" DIAMETER
|
| PART# |
DIAMETER |
USEABLE LENGTH |
OVERALL LENGTH |
WEIGHT LBS |
| QS11-0750 |
3/4" |
6" |
12" |
1.63 |
| QS17-0750 |
3/4" |
12" |
18" |
1.63 |
| QS23-0750 |
3/4" |
18" |
23-1/2" |
1.63 |
| QS30-0750 |
3/4" |
24" |
30" |
1.63 |
| QS36-0750 |
3/4" |
30" |
36" |
1.63 |
| QS48-0750 |
3/4" |
42" |
48" |
1.63 |
|
7/8" DIAMETER
|
| PART# |
DIAMETER |
USEABLE LENGTH |
OVERALL LENGTH |
WEIGHT LBS |
| QS17-0875 |
7/8" |
12" |
18" |
1.65 |
| QS23-0875 |
7/8" |
18" |
23-1/2" |
2.10 |
|
1" DIAMETER
|
| PART# |
DIAMETER |
USEABLE LENGTH |
OVERALL LENGTH |
WEIGHT LBS |
| QS11-1000 |
1" |
6" |
13" |
1.50 |
| QS17-1000 |
1" |
12" |
18" |
2.05 |
| QS23-1000 |
1" |
18" |
23-1/2" |
2.65 |
| QS36-1000 |
1" |
30" |
36" |
4.10 |
| QS48-1000 |
1" |
42" |
48" |
5.40 |
|
1-1/8" DIAMETER
|
| PART# |
DIAMETER |
USEABLE LENGTH |
OVERALL LENGTH |
WEIGHT LBS |
| QS11-1125 |
1-1/8" |
12" |
18" |
1.60 |
| QS17-1125 |
1-1/8" |
18" |
23-1/2" |
2.35 |
|
1-1/4" DIAMETER
|
| PART# |
DIAMETER |
USEABLE LENGTH |
OVERALL LENGTH |
WEIGHT LBS |
| QS17-1250 |
1-1/4" |
12" |
18" |
2.50 |
| QS23-1250 |
1-1/4" |
18" |
23-1/2" |
2.90 |
| QS36-1250 |
1-1/4" |
30" |
36" |
5.00 |
|
1-3/8" DIAMETER
|
| PART# |
DIAMETER |
USEABLE LENGTH |
OVERALL LENGTH |
WEIGHT LBS |
| QS17-1375 |
1-3/8" |
12" |
18" |
3.05 |
| QS23-1375 |
1-3/8" |
18" |
23-1/2" |
4.05 |
|
1-1/2" DIAMETER
|
| PART# |
DIAMETER |
USEABLE LENGTH |
OVERALL LENGTH |
WEIGHT LBS |
| QS17-1500 |
1-1/2" |
9" |
15" |
2.68 |
| QS23-1500 |
1-1/2" |
18" |
23-1/2" |
4.20 |
| QS36-1500 |
1-1/2" |
9" |
15" |
2.68 |
| QS48-1500 |
1-1/2" |
18" |
23-1/2" |
4.20 |
|
1-3/4" DIAMETER
|
| PART# |
DIAMETER |
USEABLE LENGTH |
OVERALL LENGTH |
WEIGHT LBS |
| QS17-1750 |
1-3/4" |
18" |
23-1/2" |
4.85 |
|
2" DIAMETER
|
| PART# |
DIAMETER |
USEABLE LENGTH |
OVERALL LENGTH |
WEIGHT LBS |
| QS36-2000 |
2" |
18" |
23-1/2" |
5.15 |
|
|
Additional lengths and sizes available upon request.
Don't see what you're looking for JUST CALL 800-327-8611 AND ASK.
|
