WET/DRY DRILLING WITH CARBIDE

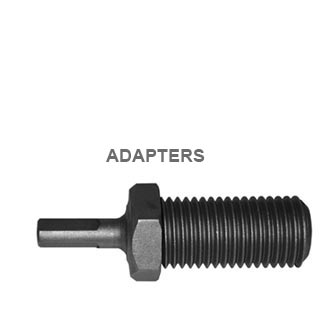

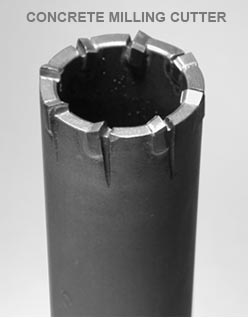

SPC SERIES - PLATE CUTTERS - CONCRETE MILLING CUTTERS - ADAPTERS - ACCESSORIES

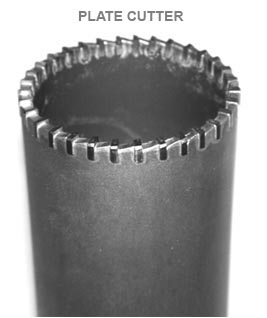

 SPC SERIES  -  PLATE CUTTERS
Designed for use in a drill rig, the B & A Plate Cutter is the ideal choice when a combination of concrete and steel is being drilled. Steel plate, embedded rebar, or even wire mesh, are not a problem for the B & A Plate Cutter. This series can be used wet with a small amount of water or even dry. The Plate Cutter can be completely rebuilt and unlike fragile diamond drills, the Plate Cutter will withstand rough usage. Note: All diameters are nominal; exact tolerances upon request.

FEMALE THREADED HUB





When are Carbide-Tipped Core Drill Bits the best alternative to Diamond Core Drill Bits for a particular application?

In general when evaluating the advantages of using core drill bits carbide or diamond drill bits, consider the 80/20 rule. 80% of applications are suitable for wet diamond core drill and may not be significantly improved by utilizing carbide core drill bits. 20% of applications, require other alternative solutions and B&A WET/DRY CARBIDE-TIPPED CORE DRILL BITS offer significant advantages in such applications.

What are these applications?

When encountering applications requiring core drill bits to drill through multiple layers of materials stacked together, such as wood, steel, concrete, rebar and a host of others material combinations, diamond drill bits performance can be hindered or completely prohibited. The Best & Available alternative is the B&A WET/DRY CARBIDE-TIPPED CORE DRILL BITS, which are designed to solve these difficult jobs encountered by the drilling professional.

Can Carbide Core Drill Bits and Diamond Core Drill Bits work together?

Yes, professional core drillers in a variety of situations effectively use both Diamond Drill Bits and Carbide Core Drill Bits to complete a project. Whether starting a hole, completing a hole, or anywhere in between, carbide core drill bits and diamond core drill bits both make significant contributions. Example: starting a hole into concrete only to encounter plate steel an inch into the hole. Switch to carbide core drill bits, drill through the steel, then switch back to the diamond drill bits until the next hindrance to the diamond bit is encountered.




carbide tipped drill bits - plate cutters - core bits

WET/DRY - SPC SERIES - PLATE CUTTER

PART
NUMBER

SIZE

USEABLE

OVERALL LENGTH

HUB SIZE

WEIGHT
LBS

SPC-1202 ½ 11" 13½" 5/8"-11 1.40
SPC-1203 5/8" 11" 13½" 5/8"-11 1.60
SPC-1204 ¾ 11" 13½" 5/8"-11 1.70
SPC-1205 7/8" 11" 13½" 5/8"-11 1.80
SPC-1206 1" 11" 13½" 5/8"-11 1.85
SPC-1207 1-1/8" 11" 13½" 5/8"-11 2.15
SPC-1208 1¼" 11" 13½" 5/8"-11 2.50
SPC-1209 1-3/8" 11" 13½" 5/8"-11 3.20
SPC-1210 1½" 11" 13½" 5/8"-11 3.25
SPC-1211 1-5/8" 11" 13½" 5/8"-11 3.35
SPC-1212 1-¾" 12" 14¾" 1¼"-7 3.45
SPC-1278 1-7/8" 12" 14¾" 1¼"-7 3.95
SPC-1213 2" 12" 14¾" 1¼"-7 4.10
SPC-1221 2-¼" 12" 14¾" 1¼"-7 4.25
SPC-1214 2-½" 12" 14¾" 1¼"-7 5.00
SPC-1215 2-¾" 12" 14¾" 1¼"-7 5.10
SPC-1216 3" 12" 14¾" 1¼"-7 6.00
SPC-1222 3-¼" 12" 14¾" 1¼"-7 6.30
SPC-1217 3-½" 12" 14¾" 1¼"-7 6.90
SPC-1218 4" 12" 14¾" 1¼"-7 8.30
SPC-1223 4-¼" 12" 14¾" 1¼"-7 8.90
SPC-1224 4-½" 12" 14¾" 1¼"-7 10.00
SPC-1219 5" 12" 14¾" 1¼"-7 10.95
SPC-1225 5-½" 12" 14¾" 1¼"-7 11.25
SPC-1220 6" 12" 14¾" 1¼"-7 12.95
SPC-6500 6-½" 12" 14¾" 1¼"-7
SPC-7000 7" 12" 14¾" 1¼"-7
SPC-8000 8" 12" 14¾" 1¼"-7
SPC-9000 9" 12" 14¾" 1¼"-7
SPC-10000 10" 12" 14¾" 1¼"-7
SPC-11000 11" 12" 14¾" 1¼"-7
SPC-12000 12" 12" 14¾" 1¼"-7
ADDITIONAL SIZES AND LENGTHS AVAILABLE UPON REQUEST
