RAZZOR
RAILROAD TIE BITS - WOOD & COMPOSITE - CARBIDE-TIPPED



"THE BEST A DRILL CAN GET"

Every year technology research creates new and improved materials from which to manufacture existing products. These products, while innately superior, still need to be processed in many the same ways as their replacements in order to be of value. For instance, a plastic or composite railroad tie, still needs to have holes drilled in it in order to attach other parts and materials. Often, existing cutting tools are not capable of drilling into these materials, or are not efficient, damage the work surface and or wear out quite rapidly.

The New Standard for hole making is the B & A RAZZOR

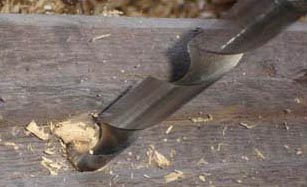

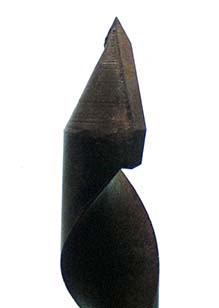

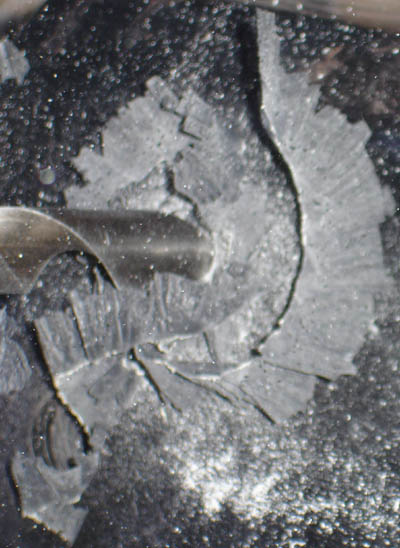

Responding to the needs of many of our customers, B & A developed a new product to work with these new materials. The RAZZOR is the product of extensive research and development by B & A which has proven to exceed the needs for processing of these materials. It features a razor sharp carbide edge on a single spiral hollow flute bit that will cut quickly and cleanly effectively removing cutting debris. The design also prevents thermal buildup thus preventing melting of the work surface. The RAZZOR can be sharpened and completely rebuilt if necessary.





RAZZOR - CARBIDE-TIPPED
RAILROAD TIE DRILL BITS - RZ SERIES

PART
NUMBER
SIZE USL OAL WT
LBS
7/16" Diameter
RZ716X9.5 7/16" 6¼" 9½" 0.40
RZ716X12 7/16" 8¾" 12" 0.50
RZ716X18 7/16" 14¾" 18" 0.65
1/2" Diameter
RZ816X9.5 1/2" 6¼" 9½" 0.45
RZ816X12 1/2" 8¾" 12" 0.50
RZ816X18 1/2" 14¾" 18" 0.70
9/16" Diameter
RZ916X9.5 9/16" 6¼" 9½" 0.50
RZ916X12 9/16" 8¾" 12" 0.55
RZ916X18 9/16" 14¾" 18" 0.80
5/8" Diameter
RZ58X9.5 5/8" 6¼" 9½" 0.55
RZ58X12 5/8" 8¾" 12" 0.60
RZ58XZ18 5/8" 14¾" 18" 0.90
11/16" Diameter
RZ1116X9.5 11/16" 6¼" 9½" 0.60
RZ1116X12 11/16" 8¾" 12" 0.65
RZ1116X18 11/16" 14¾" 18" 1.00
3/4" Diameter
RZ34X9.5 3/4" 6¼" 9½" 0.66
RZ34X12 3/4" 8¾" 12" 0.75
RZ34X18 3/4" 14¾" 18" 1.10
13/16" Diameter
RZ1316X9.5 13/16" 6¼" 9½" 0.70
RZ1316X12 13/16" 8¾" 12" 0.85
RZ1316X18 13/16" 14¾" 18" 1.20
Don't see what you're looking for JUST CALL 800-327-8611 AND ASK.
WOOD DRILL BIT - COMPOSITE DRILL BIT - CARBIDE-TIPPED
