The B & A Rebar Cutter is an easy method for
drilling through embedded rebar and the surrounding concrete. The B
& A Rebar Cutter can be used in a 1/2" drill motor equipped with a
3-Jawed Chuck or directly in the hammer motor utilizing the B & A
Rotary Chuck Driver™ adapter. The B & A Rebar Cutter can be used in
any 1/2" capacity or larger drill motor equipped with a three jaw
chuck and a rated no-load speed of 400 R. P. M. to 1,200 R. P. M. This
includes most combination hammer drills, but when using a
combination hammer drill the selector switch must be in the rotary
only position! The B & A Rebar Cutter can be used in a Spline Drive
Hammer, a SDS MAX ®™ Hammer, or a SDS PLUS ®™ Hammer by utilizing the B
& A Rotary Chuck Driver™. |
|
|
---- | |
|
HOW TO USE A REBAR CUTTER |
|
STEP 1 |
STEP 2 |
STEP 3 |
When drilling with a rotary hammer and a
carbide tipped hammer bit, the tools must be quickly stopped
when the bit tip comes in contact with steel reinforcing bar or
wire mesh. If the tool is not stopped any carbide tipped
hammer bit will fail. |
 |
Using a standard 1/2" chuck capacity rotary
drill with the rebar cutter inserted into the chuck, place the
rebar cutter into the hole and drill through the embedded rebar
or wire by maintaining an even and constant pressure. |
 |
After drilling through the rebar or wire, remove the
debris from the hole and continue drilling with the rotary
hammer and carbide tipped bit. |
 |
|
ROTARY REBAR CUTTER
RB SERIES - SPECIALTY PRODUCT |
|
PART
NUMBER |
SIZE |
OAL |
SHANK |
WT
LBS |
PART
NUMBER |
SIZE |
OAL |
SHANK |
WT
LBS |
|
ROUND
SHANK - 3 FLATS |
SDS PLUS ® SHANK |
|
ONE PIECE |
|
RB-80 |
3/8" |
12" |
1/2" |
0.60 |
RBSR-80 |
3/8" |
12" |
SDS |
0.60 |
|
RB-90 |
1/2" |
12" |
1/2" |
0.70 |
RBSR-90 |
1/2" |
12" |
SDS |
0.70 |
|
RB-90-18 |
1/2" |
18" |
1/2" |
0.70 |
RBSR-90-18 |
1/2" |
18" |
SDS |
0.70 |
|
RB-95 |
9/16" |
12" |
1/2" |
0.85 |
RBSR-95 |
9/16" |
12" |
SDS |
0.85 |
|
RB-100 |
5/8" |
12" |
1/2" |
1.00 |
RBSR-100 |
5/8" |
12" |
SDS |
1.00 |
|
RB-100-18 |
5/8" |
18" |
1/2" |
1.00 |
RBSR-100-18 |
5/8" |
18" |
SDS |
1.00 |
|
RB-101 |
11/16" |
12" |
1/2" |
1.15 |
RBSR-101 |
11/16" |
12" |
SDS |
1.15 |
|
RB-102 |
3/4" |
12" |
1/2" |
1.30 |
RBSR-102 |
3/4" |
12" |
SDS |
1.30 |
|
RB-102-18 |
3/4" |
18" |
1/2" |
1.30 |
RBSR-102-18 |
3/4" |
18" |
SDS |
1.30 |
|
RB-102-24 |
3/4" |
24" |
1/2" |
1.30 |
RBSR-102-24 |
3/4" |
24" |
SDS |
1.30 |
|
RB-1316 |
13/16" |
12" |
1/2" |
1.30 |
RBSR-1316 |
13/16" |
12" |
SDS |
1.30 |
|
RB-103 |
7/8" |
12" |
1/2" |
1.75 |
RBSR-103 |
7/8" |
12" |
SDS |
1.75 |
|
RB-104 |
1" |
12" |
1/2" |
2.35 |
RBSR-104 |
1" |
12" |
SDS |
2.35 |
|
RB-105 |
1-1/8" |
12" |
1/2" |
2.60 |
RBSR-105 |
1-1/8" |
12" |
SDS |
2.60 |
|
RB-106 |
1-1/4" |
12" |
1/2" |
3.15 |
RBSR-106 |
1-1/4" |
12" |
SDS |
3.15 |
|
TWO
PIECE |
|
RB-107 |
1-3/8" |
12" |
1/2" |
3.75 |
RBSR-107 |
1-3/8" |
12" |
1/2" |
3.75 |
|
RB-108 |
1-1/2" |
12" |
1/2" |
4.20 |
RBSR-108 |
1-1/2" |
12" |
1/2" |
4.20 |
|
RB-110 |
1-3/4" |
12" |
1/2" |
4.65 |
RBSR-110 |
1-3/4" |
12" |
1/2" |
4.65 |
|
RB-112 |
2" |
12" |
1/2" |
5.10 |
RBSR-112 |
2" |
12" |
1/2" |
5.10 |
|
RB-115 |
2-1/2" |
12" |
1/2" |
5.40 |
RBSR-115 |
2-1/2" |
12" |
1/2" |
5.40 |
|
RB-117 |
3" |
12" |
1/2" |
6.90 |
RBSR-117 |
3" |
12" |
1/2" |
6.90 |
|
SHANKS - REBAR CUTTER |
PART
NUMBER |
THREAD |
OAL |
SHANK |
WT
LBS |
PART
NUMBER |
THREAD |
OAL |
SHANK |
WT
LBS |
|
RBS-6 |
3/4"-10 |
6" |
1/2" |
0.65 |
RBS-12 |
3/4"-10 |
12" |
1/2" |
0.70 |
|
|
|
|
|
|
|
| |

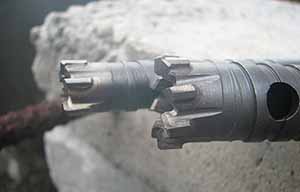

98% OF CARBIDE TIPPED MASONRY
DRILL BIT FAILURE |
|
| |
|
 |
DAMAGE
CAUSED BY
REBAR |
 |
DAMAGE
CAUSED BY
REBAR |
 |
|
|
| |
IS CAUSED BY STRIKING REBAR! |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Don't see what you're looking for JUST CALL 800-327-8611 AND ASK.
|
